YLD-42A Vertical Dynamic Balancer: High-Precision Single-Plane Balancing for Pump Impellers

Product Description

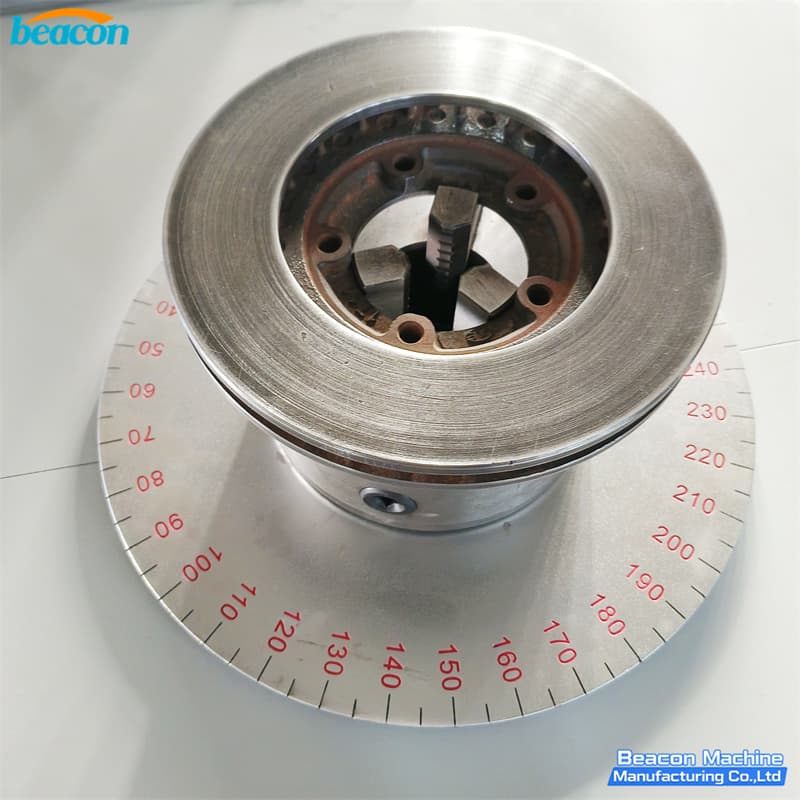

The YLD-42A is a state-of-the-art system designed to eliminate structural resonance in disc-centric components. By utilizing a rigid bearing structure, this heavy-duty woodworking cutter balancing machine ensures maximum stability during high-speed rotational testing. When dealing with specialized parts that lack integral shafts, employing the correct pneumatic expanding mandrel tooling adapter is vital. This mechanical interface guarantees exact concentricity, eliminating fixture-induced errors and providing a highly reliable vertical dynamic unbalance detection solution for demanding workshop environments.

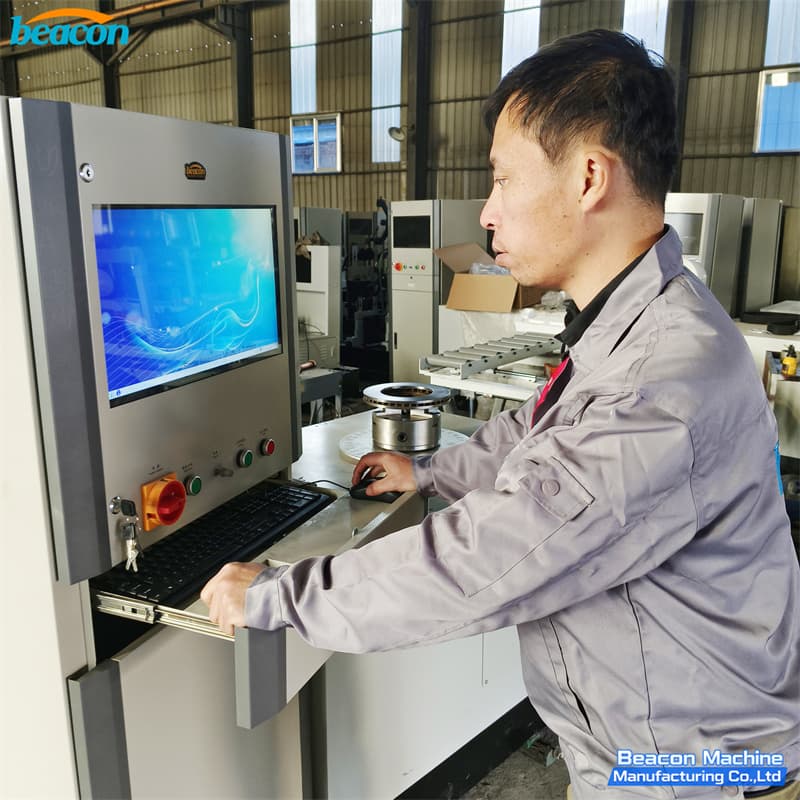

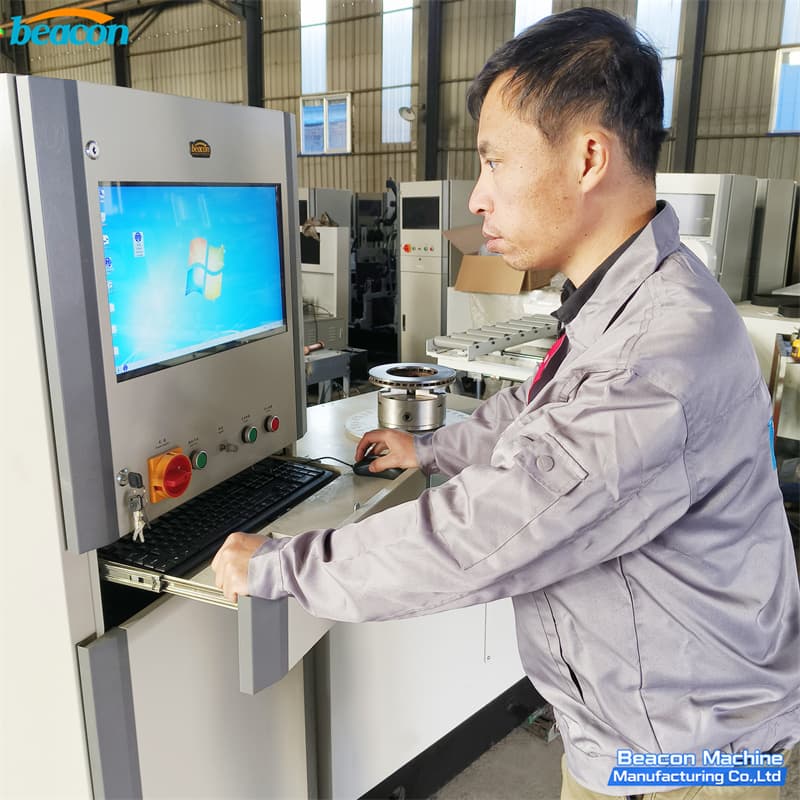

Beyond its robust physical frame, the YLD-42A excels in digital signal processing. The advanced touch-screen console rapidly interprets raw vibration data from high-sensitivity piezoelectric transducers. For technicians analyzing rotary dynamics, understanding the influence of calibration radius on residual unbalance is crucial for accurate mass correction. This intelligent software provides clear phase-angle positioning, making this microcomputer controlled single-sided balancing unit incredibly user-friendly while strictly adhering to international ISO tolerance grades.

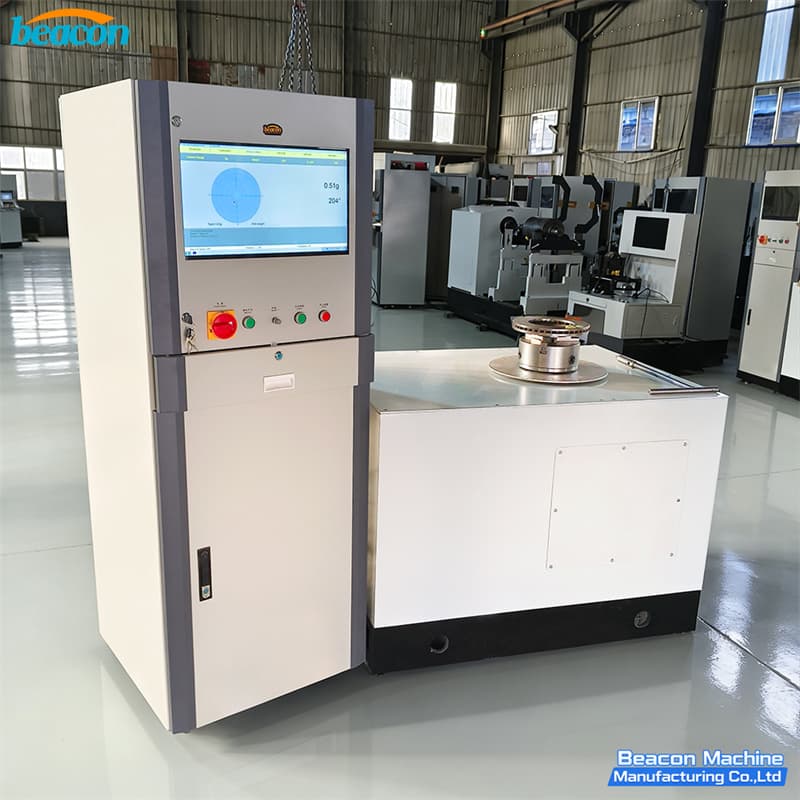

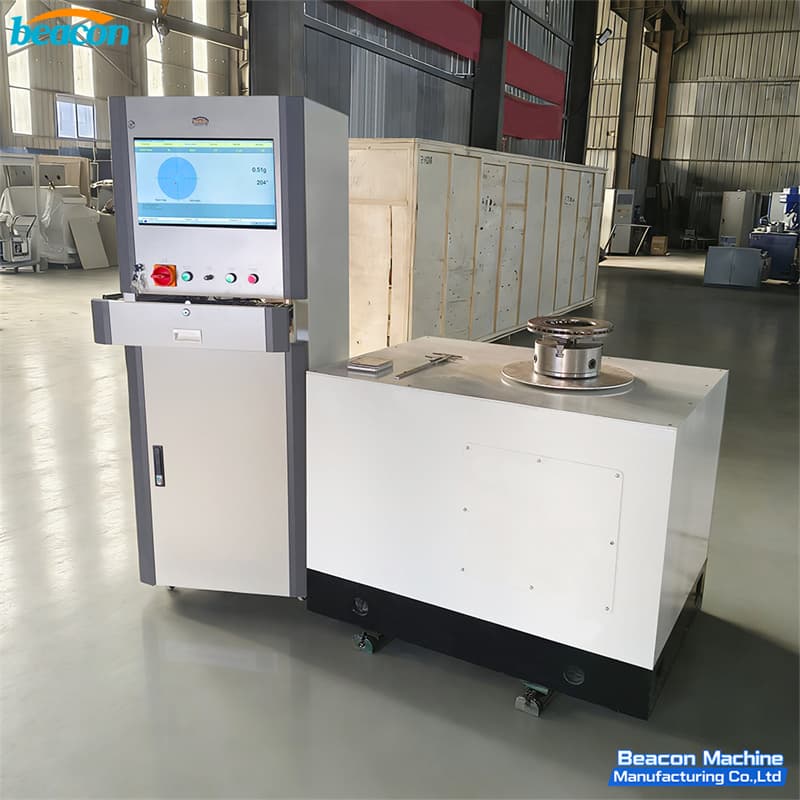

Scene picture
