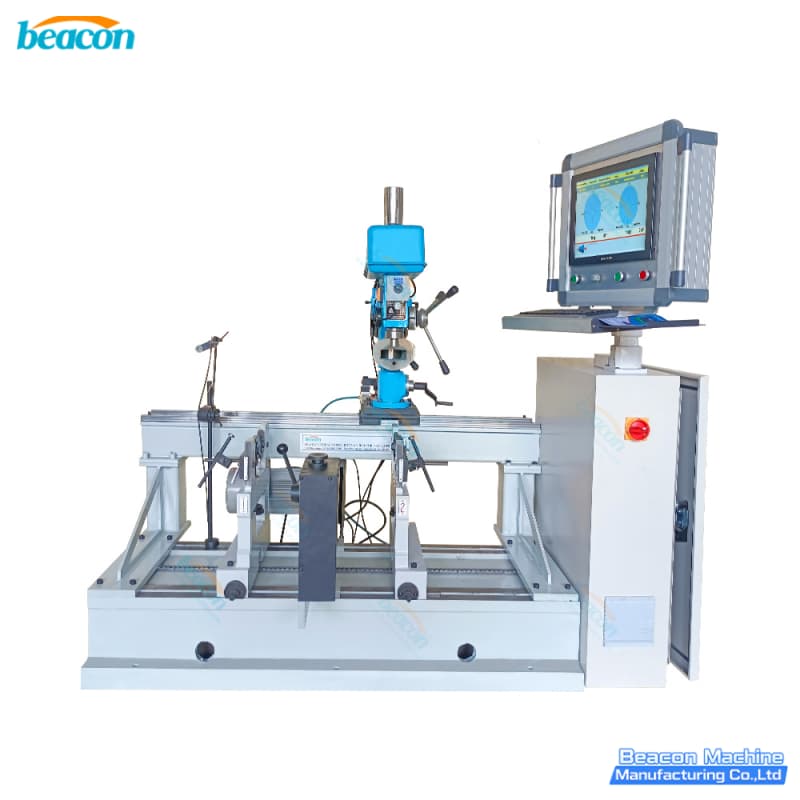

YYQ-100L Belt Drive Balancing Machine: High-Precision Armature Balancing System with Drilling Unit

Product Description

The YYQ-100L represents a massive leap in cylindrical component manufacturing, serving as a highly efficient belt-driven rotor vibration diagnostic machinery. Unlike setups that rely on end-drive couplings—such as those found in typical heavy-duty universal joint shaft balancing solutions which are better suited for massive industrial blowers—this tangential belt-driven architecture wraps directly around the workpiece. This ensures ultra-smooth power transmission, completely eliminating parasitic mechanical interference during high-speed testing. It is the definitive electric motor armature balancing equipment, providing flawless dual-plane eccentricity detection for sensitive pump rotors, printing rollers, and textile spindles.

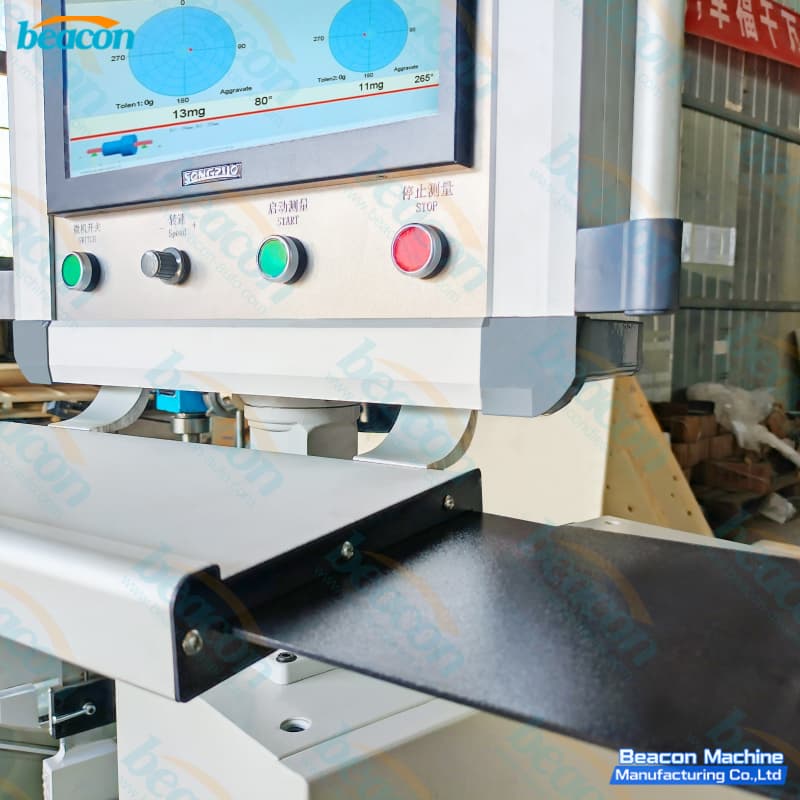

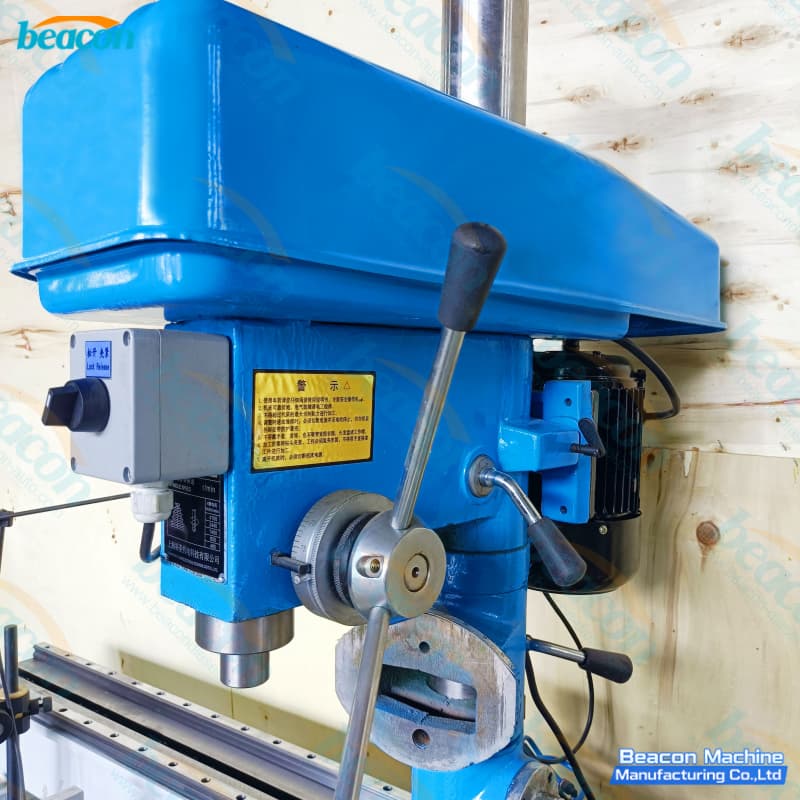

What truly elevates the YYQ-100L is its built-in radial drilling head, transforming the bed into an advanced in-situ mass removal correction tool. Operators no longer need to transfer the workpiece to a separate milling station after measurement. The integrated microcomputer calculates the exact drill depth required based on the vibration vectors. For technicians exploring how flexible drives impact measurement stability, reviewing the correlation between tangential belt tension dynamics and residual unbalance accuracy reveals why this integrated approach achieves superior ISO 1940 compliance, significantly streamlining your entire two-plane correction workflow without removing the component from the supports.

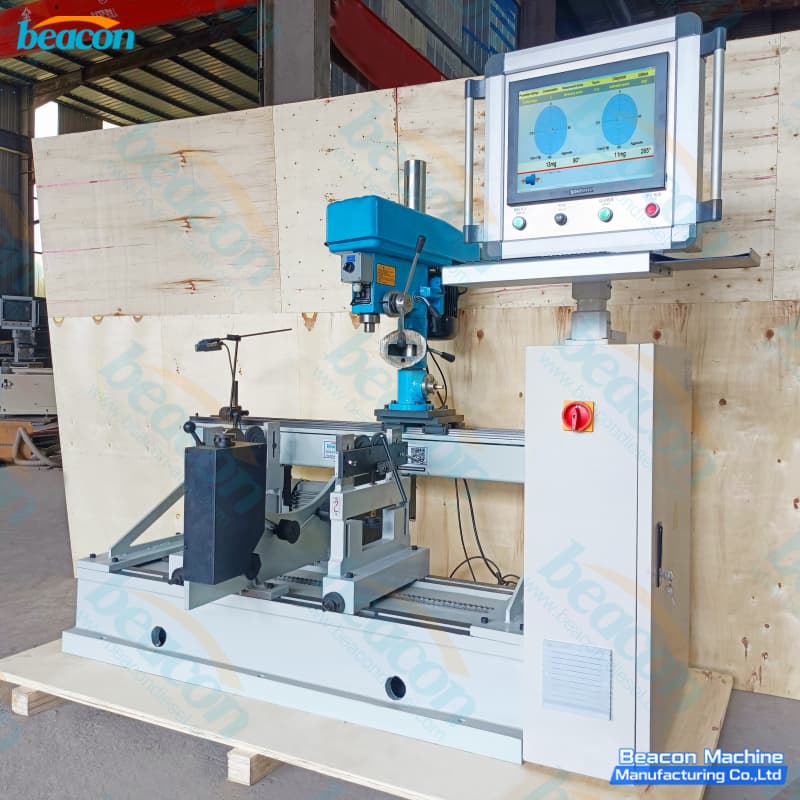

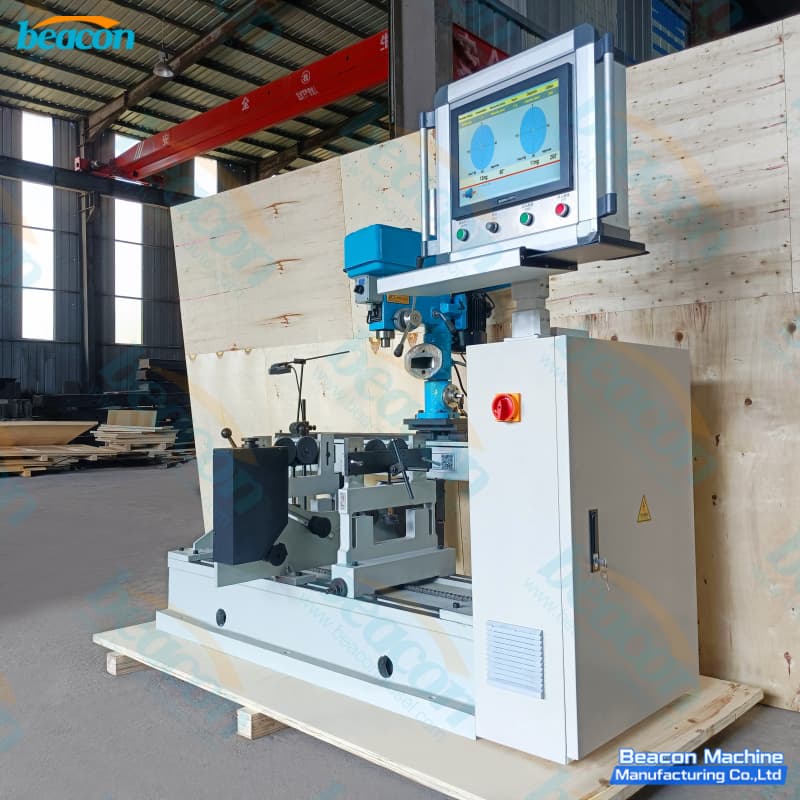

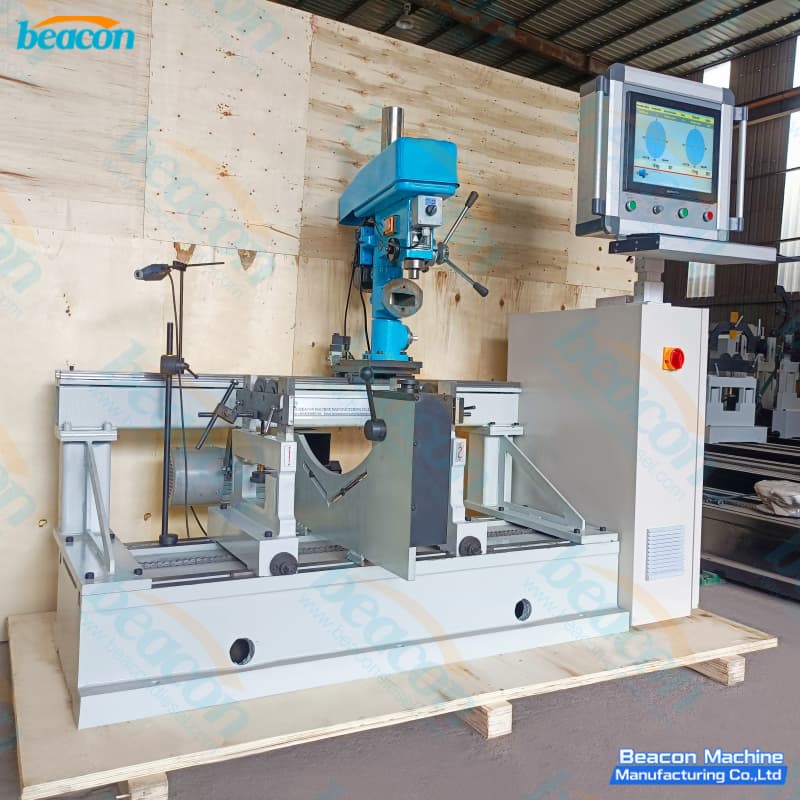

Scene picture

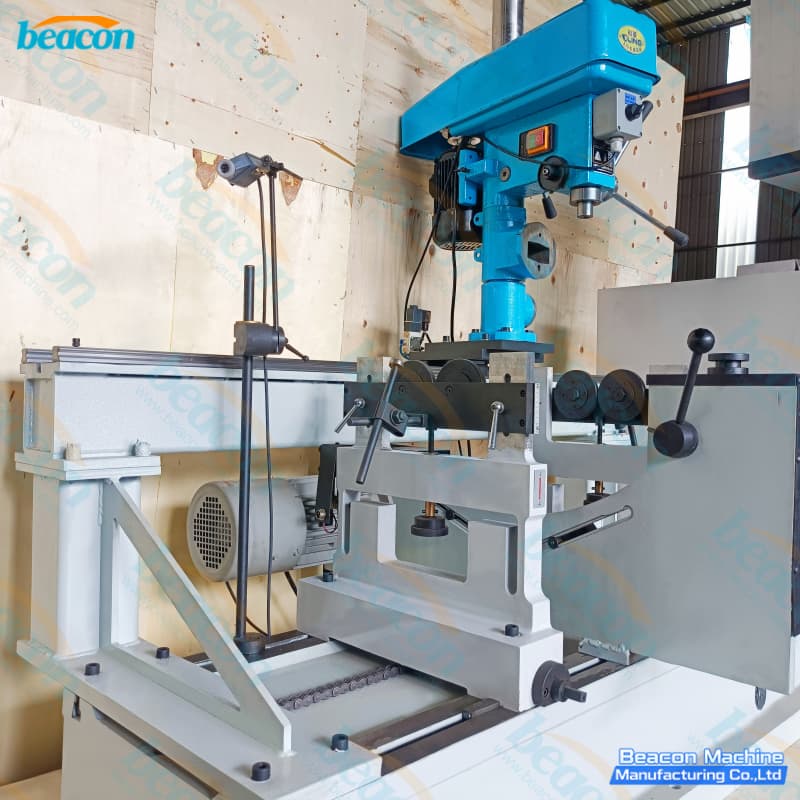

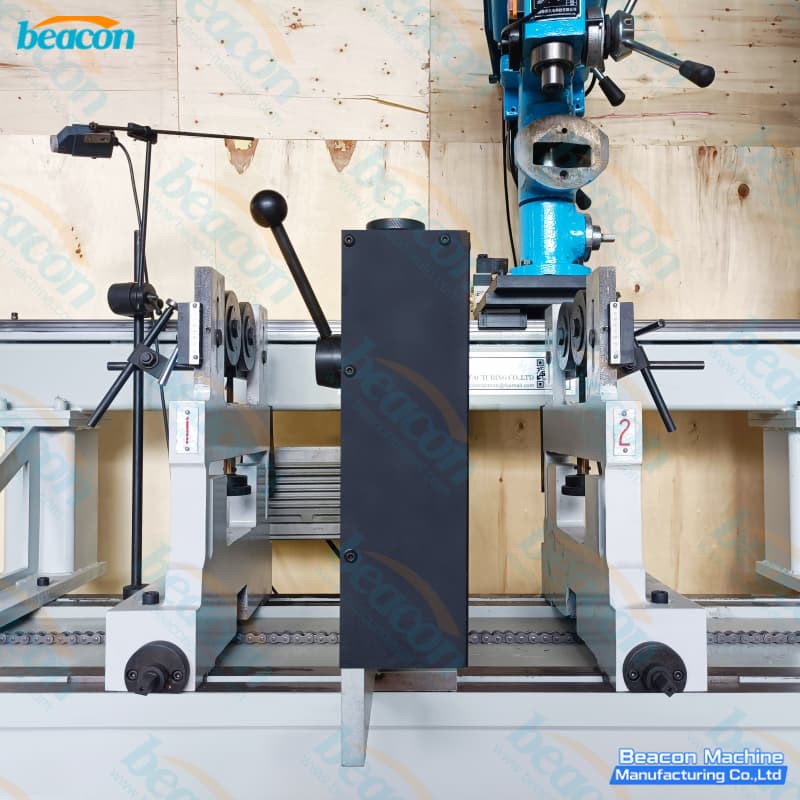

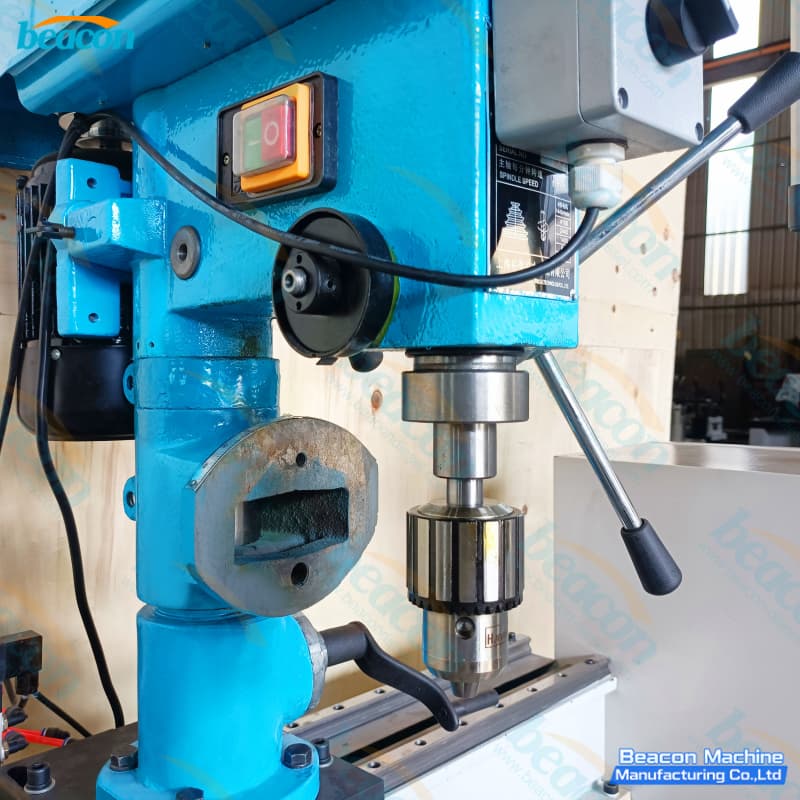

Detail Picture
