ltimate Guide on How to Choose a Diesel Test Bench: Find the Best Common Rail Injector Test Bench for Sale

If you run a diesel repair workshop or a fuel injection service center, upgrading your diagnostic equipment is essential for staying competitive. However, figuring out how to choose a diesel test bench can be overwhelming given the vast array of technologies on the market. From passenger cars to heavy-duty machinery, matching the right diesel test bench to your target market is the key to maximizing your ROI.

Whether you are looking for a standalone common rail injector test bench for sale or comprehensive HEUI EUI EUP diesel test equipment, this guide breaks down the four main categories of diesel test benches to help you make an informed decision.

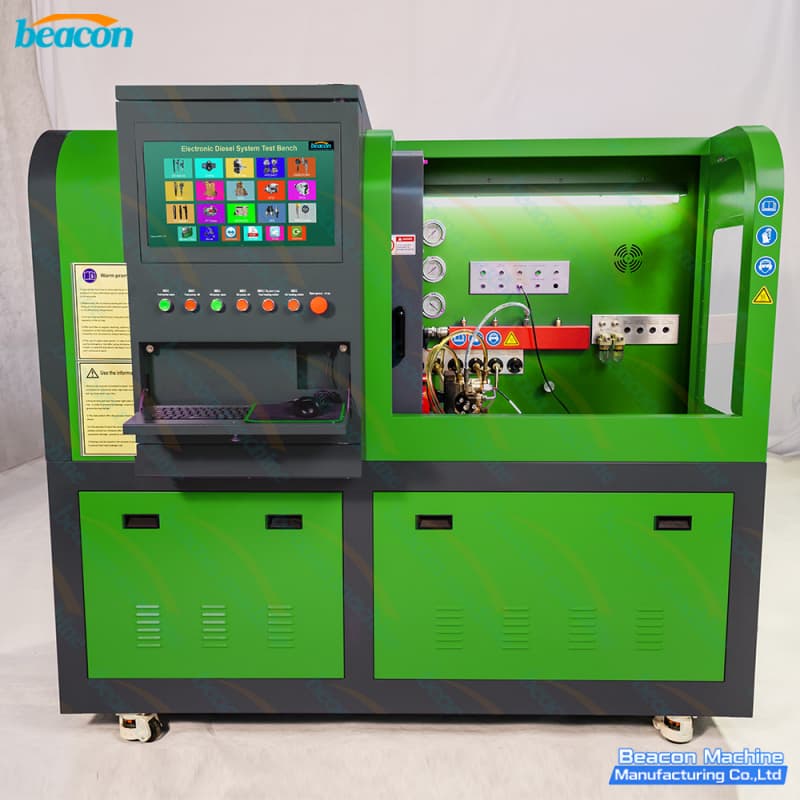

1. Pure Common Rail Test Benches

A pure common rail (CR) test bench is the most popular entry-level and mid-range choice for workshops focusing on modern passenger and light commercial vehicles.

• Injectors Tested: Bosch, Denso, Delphi, Siemens (VDO/Continental), and piezo injectors.

• Engine Types: Light-duty and medium-duty diesel engines (e.g., Cummins ISF, Ford TDCi, GM Duramax).

• Target Vehicle Models: Passenger cars, SUVs, pickup trucks, and light commercial vans (LCVs).

• Testing Program Differences: The software strictly focuses on high-pressure common rail parameters. Testing programs evaluate fuel delivery under various pressures, pilot injection, main injection, return flow, and VIP (Valve Opening Pressure). They also generate new coding (IMA/QR codes) for injectors to communicate with the vehicle’s ECU.

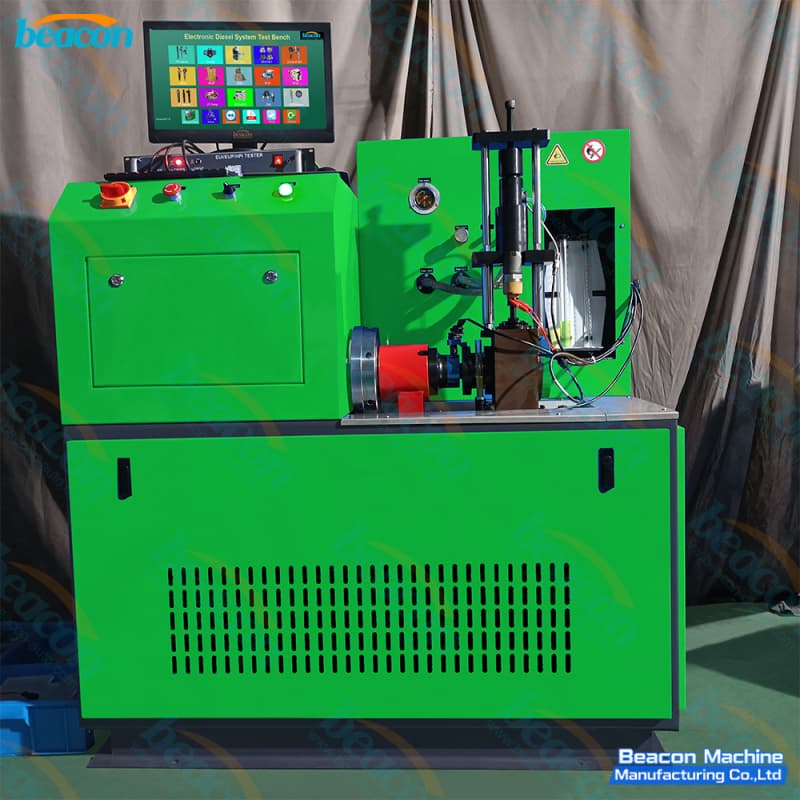

2. EUI / EUP Test Benches (Electronic Unit Injector / Pump)

EUI and EUP systems combine the injection pump and the injector into a single unit, driven by the engine's camshaft. Testing these requires specialized cam-box attachments.

• Injectors Tested: Electronic Unit Injectors (EUI) and Electronic Unit Pumps (EUP) from brands like Delphi, Bosch, and Cummins.

• Engine Types: Heavy-duty diesel engines, marine engines, and large industrial generators.

• Target Vehicle Models: Heavy-duty trucks (Volvo, Scania, Mercedes-Benz Actros, Mack), buses, and heavy commercial transport.

• Testing Program Differences: Unlike common rail systems that rely on constant rail pressure, EUI/EUP test programs measure the precise timing of the mechanical cam stroke combined with the electronic solenoid pulse. The software specifically focuses on BIP (Bypass Valve Injection Point) measurement, testing response time, and simulating high-pressure mechanical cam profiles.

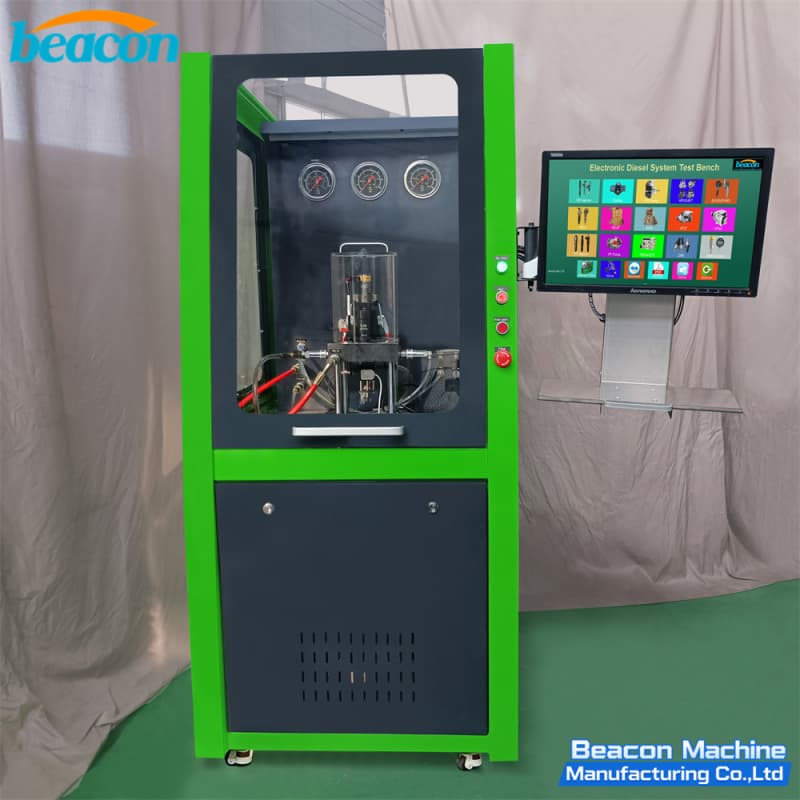

3. HEUI Test Benches (Hydraulically Actuated Electronically Controlled Unit Injector)

HEUI systems use engine oil pressure, rather than fuel pressure or a camshaft, to actuate the fuel injector. This requires a completely different testing environment.

• Injectors Tested: Caterpillar HEUI injectors, Navistar, and Ford Powerstroke injectors.

• Engine Types: Medium to heavy-duty off-highway engines and specific truck engines (e.g., Cat C7, C9, 3126, Ford 7.3L / 6.0L).

• Target Vehicle Models: Excavators, loaders, agricultural tractors, and classic American heavy-duty pickup trucks.

• Testing Program Differences: The testing software for HEUI diesel engine injector testing machines is unique because it must simulate the dual fluid system. The program controls and tests the hydraulic engine oil actuation pressure alongside the diesel fuel delivery. It measures injector response under various simulated oil pressures to diagnose internal oil leaks and fuel atomization.

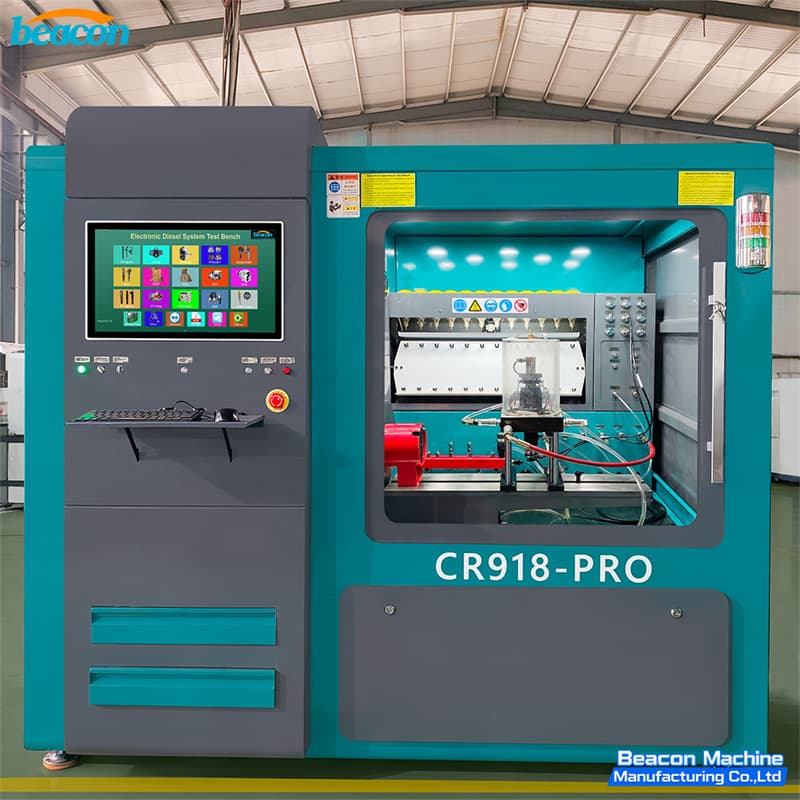

4. Comprehensive Diesel Test Benches (All-in-One Systems)

For large-scale diesel service centers that cannot afford to turn any customer away, a comprehensive diesel fuel injection pump tester is the ultimate solution.

• Injectors Tested: All of the above (Common Rail, EUI, EUP, HEUI), plus traditional mechanical rotary (VE) and inline fuel pumps.

• Engine Types: Universal—from a small 1.5L diesel car engine to massive mining equipment engines.

• Target Vehicle Models: Universal coverage.

• Testing Program Differences: This machine features a highly advanced, multi-module software suite. The technician selects the system type on the screen, and the bench automatically adjusts its driving methods (switching between high-pressure fuel, cam-box drive, or hydraulic oil pressure). While these benches require a larger upfront investment, they provide unparalleled workshop versatility.


Conclusion: Making Your Decision

Understanding how to choose a diesel test bench ultimately comes down to analyzing your local market. If your garage mostly services everyday diesel cars, searching for a standard common rail injector test bench for sale is your best starting point. However, if you are surrounded by construction companies and freight fleets, investing in EUI/EUP or HEUI capabilities is non-negotiable.
