Engine misfires, rough idling, and poor fuel economy are common issues caused by clogged or faulty petrol injectors. The BC-4H is specifically engineered as a highly efficient
4 cylinder gasoline fuel injector diagnostic equipment to help mechanics quickly identify and resolve these problems. By visually inspecting the spray volume and atomization
in the four graduated glass tubes, technicians can easily spot malfunctioning units before they cause severe engine damage.

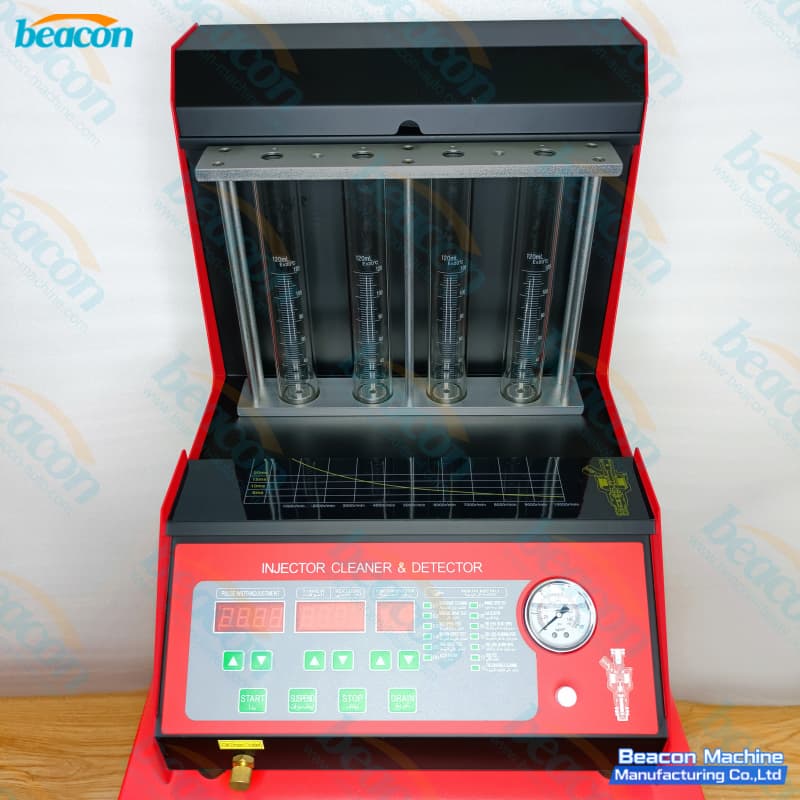

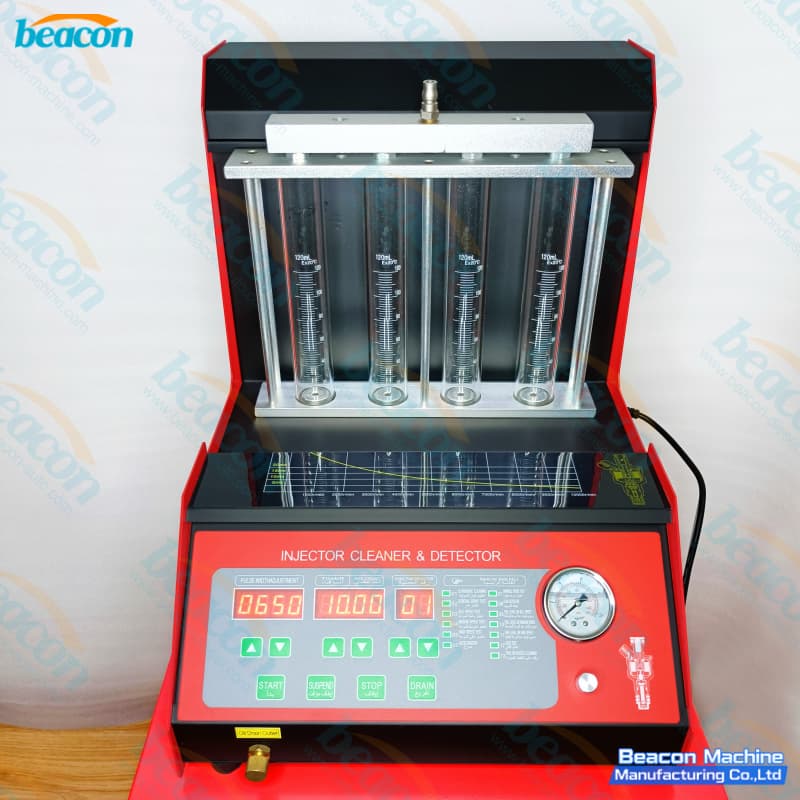

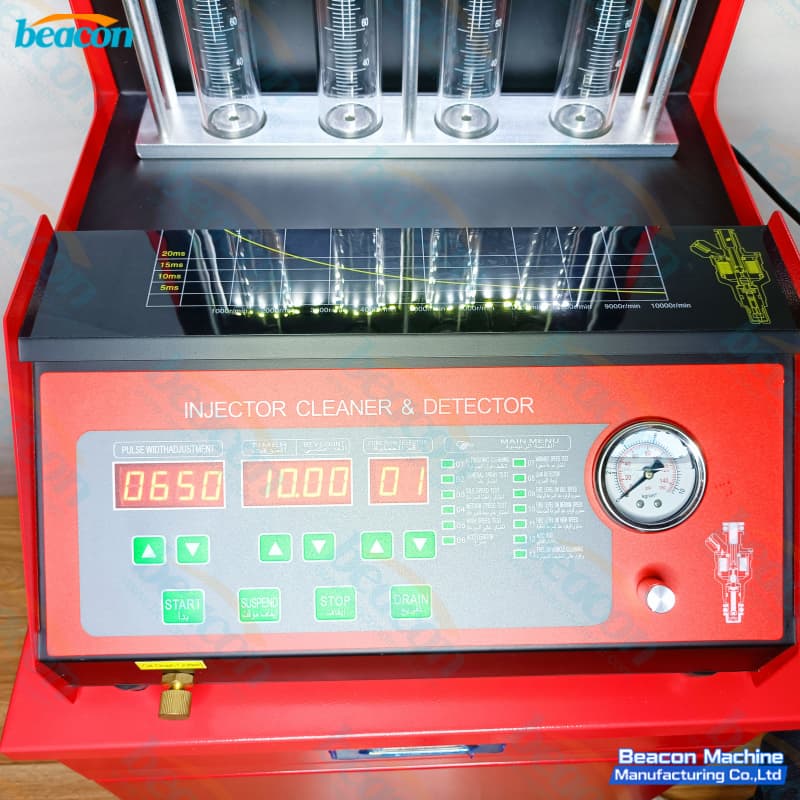

This compact, red-and-black desktop unit is more than just a cleaner; it is a comprehensive petrol injector leak and flow rate tester. Its built-in microprocessor allows you to
simulate various engine RPMs and pulse widths to observe real-time dynamic performance. For automotive workshops aiming to expand their service range, we highly recommend
pairing this gasoline machine with our Diesel Test Bench to offer complete fuel system diagnostic services for both light vehicles and heavy-duty trucks. Maximize your garage's
profitability with our reliable automotive gasoline injector cleaning station.








| Specification Feature | Details |
| Model | BC-4H Injector Cleaner & Detector |
| Testing Capacity | 4 Cylinders / 4 Injectors simultaneously |
| Applicable Fuel Type | Gasoline / Petrol / EFI / MPI / SFI (Not for Diesel) |
| Power Supply | AC 110V / 220V ±10% (50/60Hz) |
| System Pressure Range | 0 - 6.5 Bar (Adjustable via mechanical pressure gauge) |

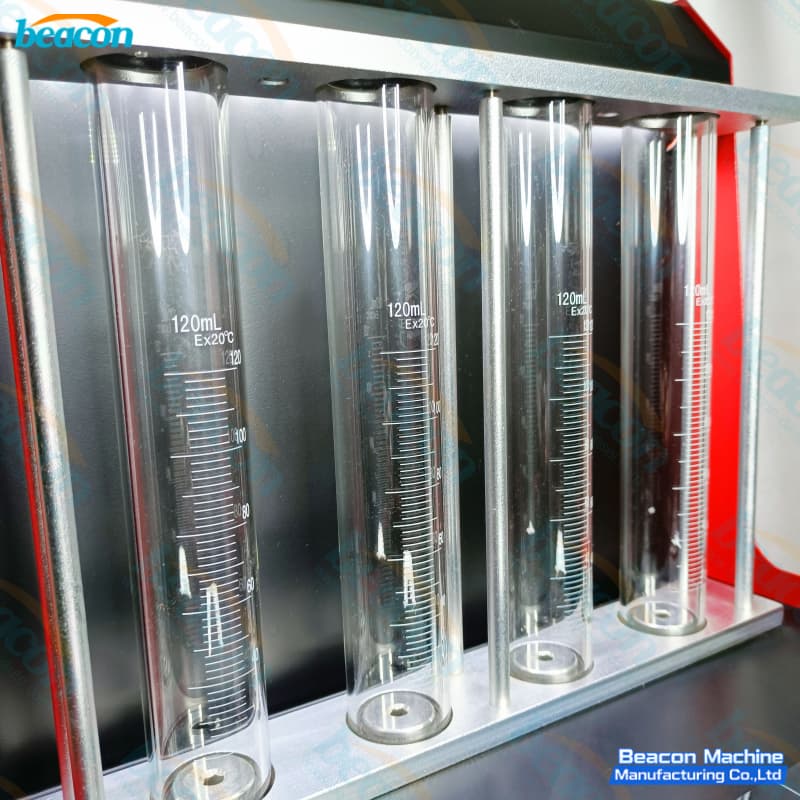

| Measuring Cylinder Capacity | 120ml (Clear glass tubes for visual inspection) |
| RPM Simulation Range | 10 - 9999 rpm (Step: 10 rpm) |
| Pulse Width Range | 0.5 - 25 ms (Step: 0.1 ms) |

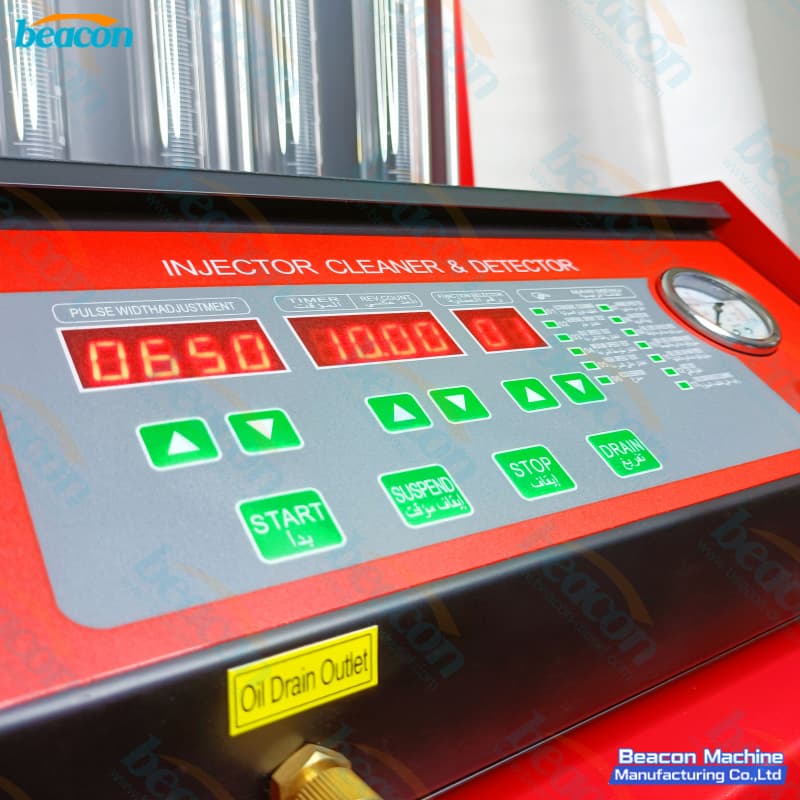

| Display & Control | Digital LED screen with push-button membrane panel |
| Core Functions | Uniformity test, Leakage test, Injecting flow test, Auto-test |
| External Feature | Built-in fuel drain valve (Push to drain) |
