BCZY-2B traditional alternator performance tester | Generator Starter Testing Machine

Product Description

For workshops that value classic reliability and straightforward operation, the BCZY-2B is the ideal Generator Starter Testing Machine. Unlike highly complex digital units,
this rugged, traditional alternator performance tester features highly visible analog gauges for real-time voltage and current monitoring. It allows mechanics to instantly
observe dynamic fluctuations during load tests.


Designed as a robust mechanical pointer type auto generator tester, it utilizes a durable manual screw-clamping system that securely holds various 12V and 24V automotive
components. This equipment guarantees long-lasting service life, making routine electrical inspections, no-load checks, and braking torque evaluations highly intuitive, stable,
and cost-effective.

Scene picture

analog display alternator test stand

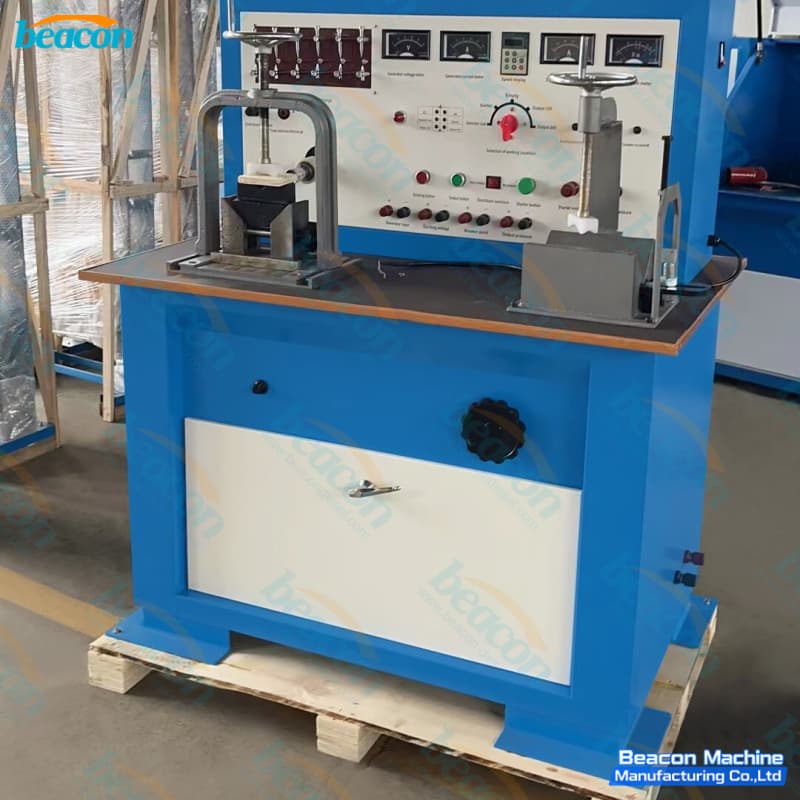

manual clamp starter testing equipment

classic auto electrical diagnostic bench

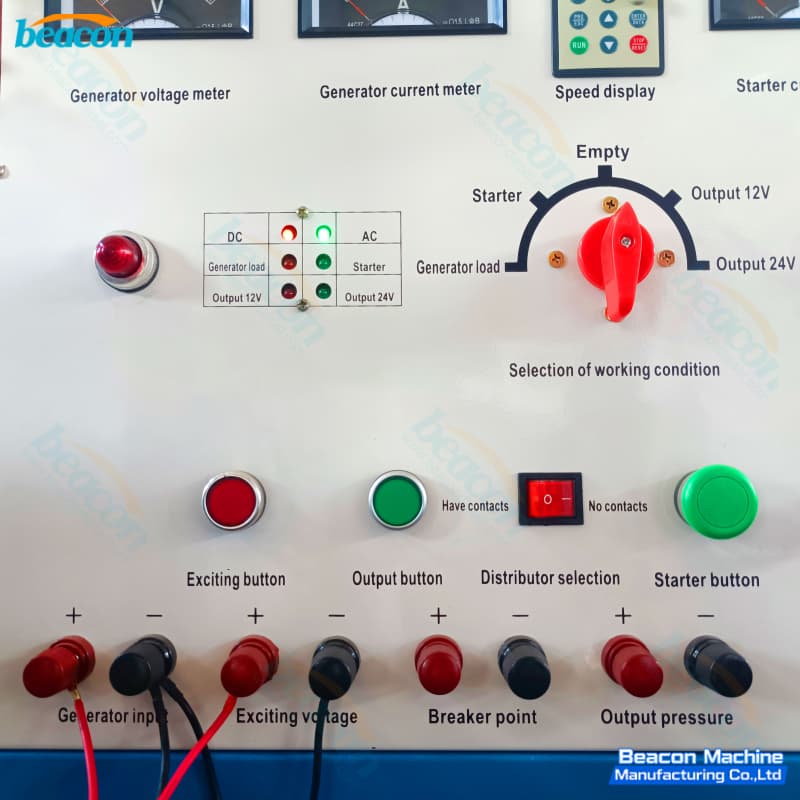

pointer meter generator test machine

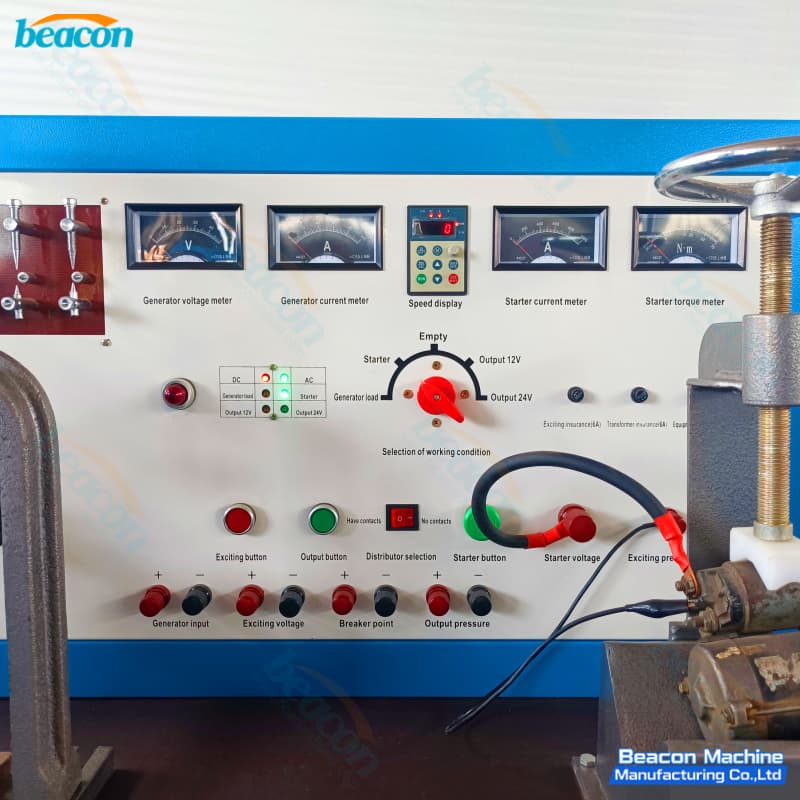

traditional starter motor load tester

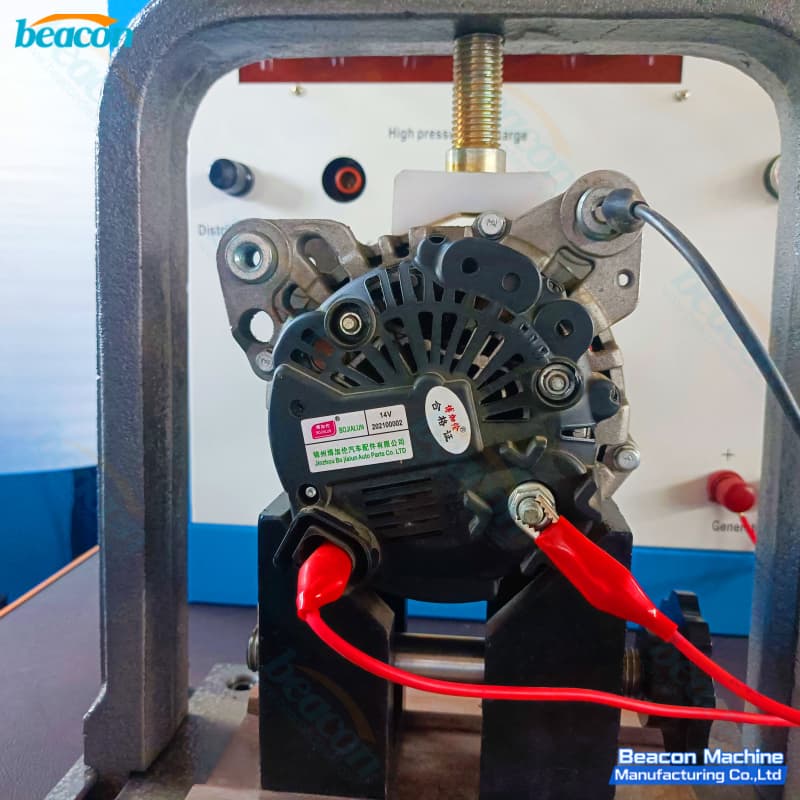

mechanical automotive alternator bench

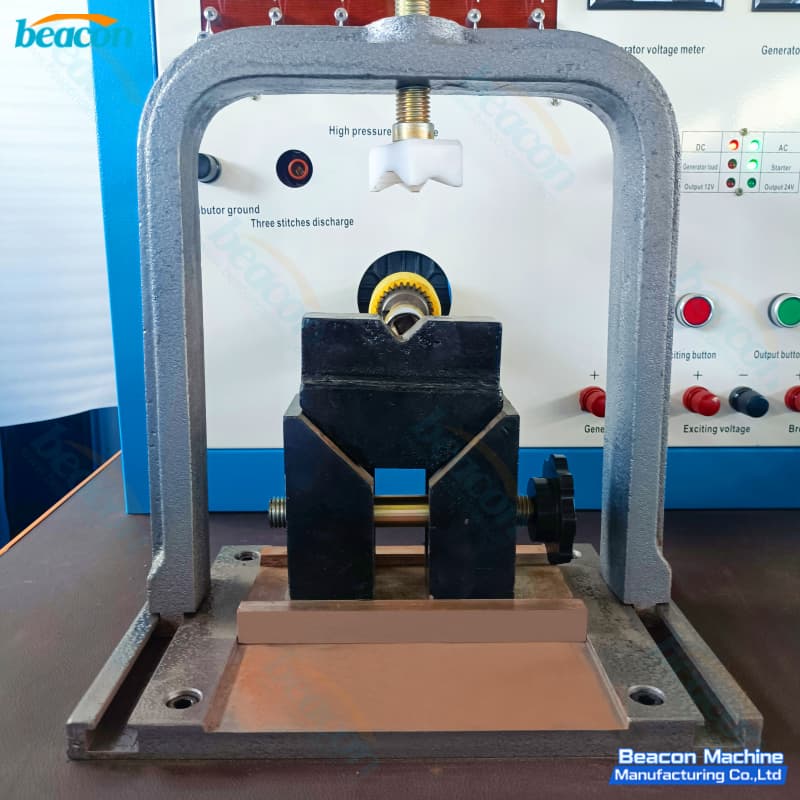

heavy steel auto electrical test equipment

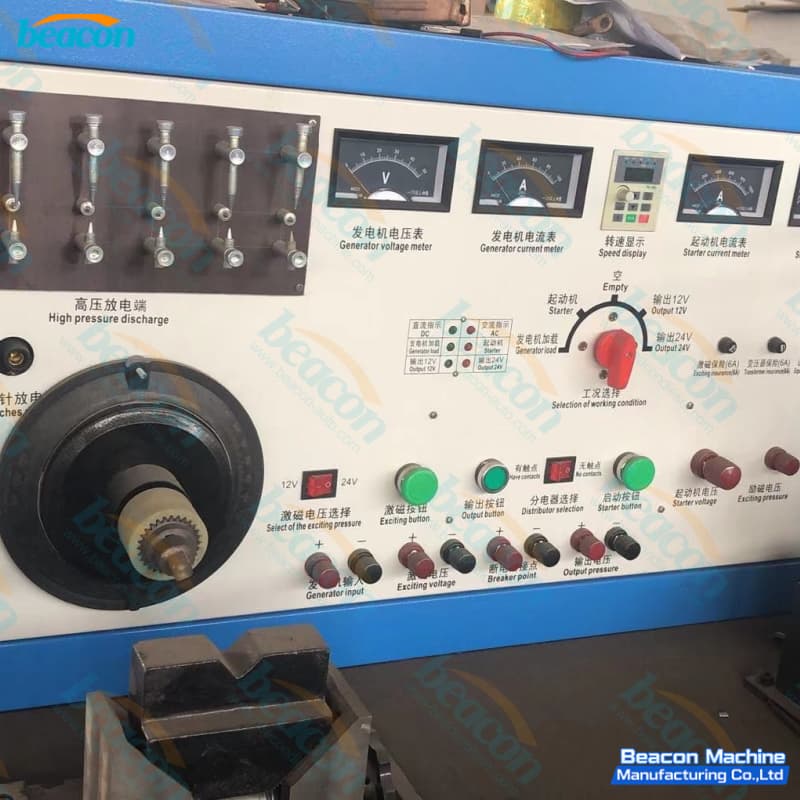

cost effective generator tester machine


parameter

Specification ItemParameter Details
ModelBCZY-2B
Display Panel TypeAnalog Pointer Meters (Highly visible gauges)
Component ClampingManual Screw-type Clamp Fixture
Test Voltage System12V / 24V DC
Working Power Supply380V / 220V, 50Hz/60Hz, 3-Phase (Customizable)
Drive Motor Power4KW / 5.5KW Standard Motor
Alternator Max Load Current150A (12V) / 75A (24V)
Starter Max Test Current0 - 1000A
Speed Regulation MethodMechanical / Standard Inverter Control
Load DeviceHigh-power Resistor Bank
Starter Test ItemsNo-load performance, Load test, Braking torque
Machine CabinetHeavy-duty steel construction
Dimensions (LWH)Approx. 1400mm x 800mm x 1400mm
