CRS900S Common Rail Injector Test Bench | Beacon Diesel Test Equipment

Product Description

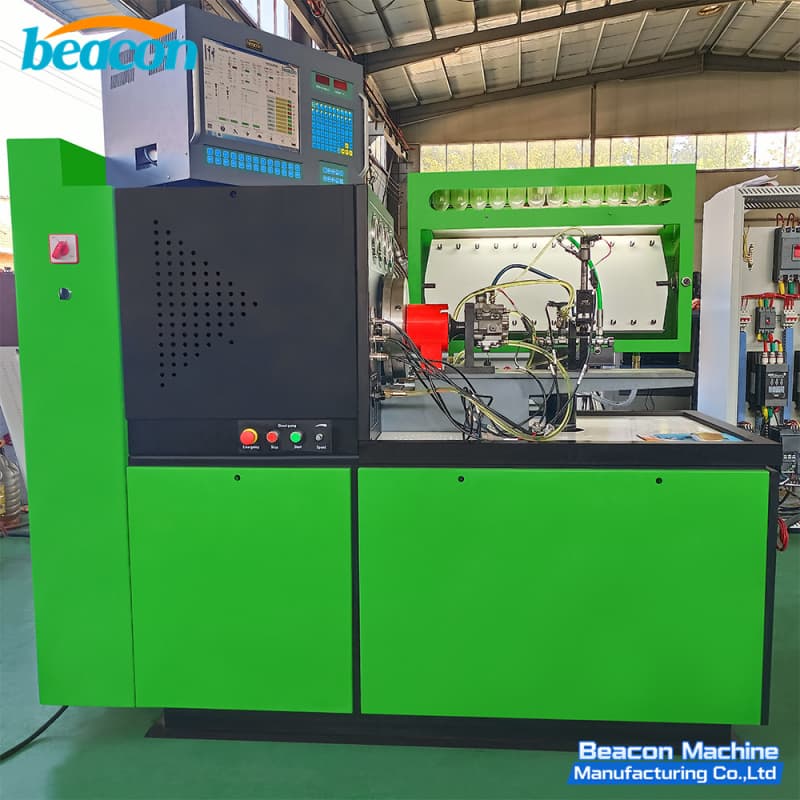

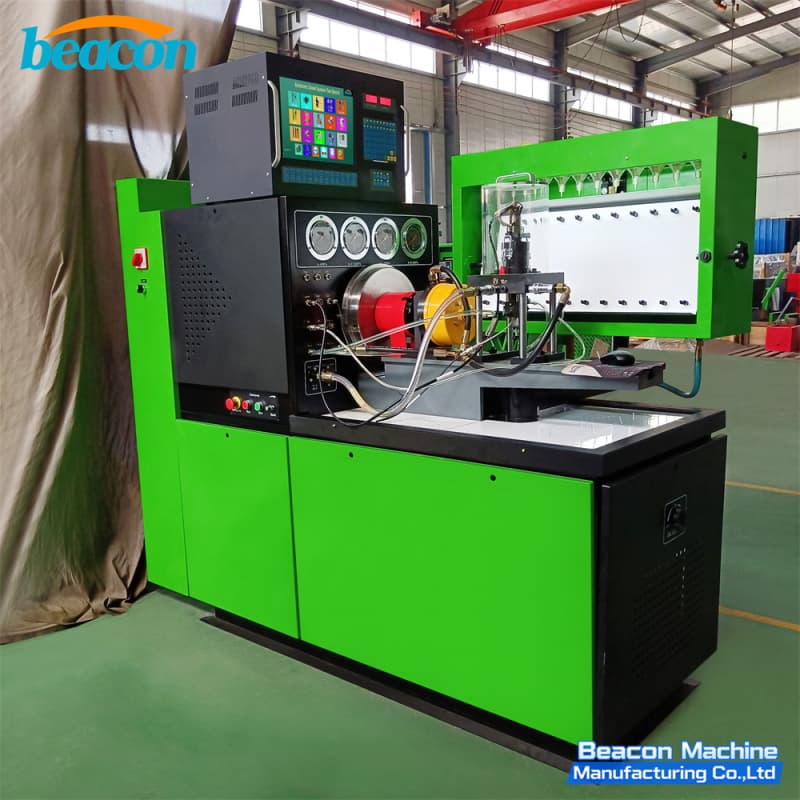

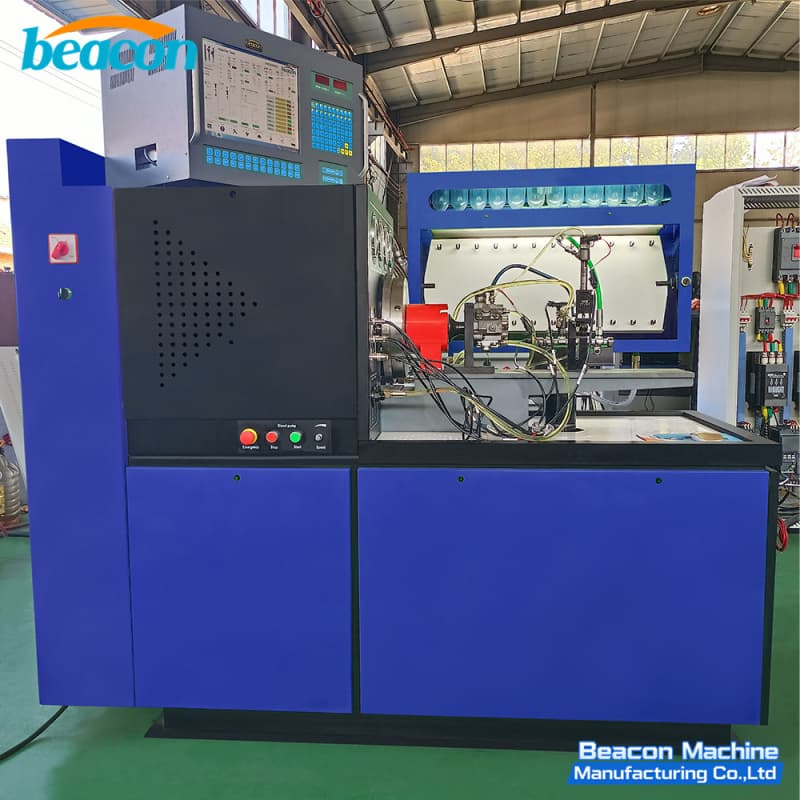

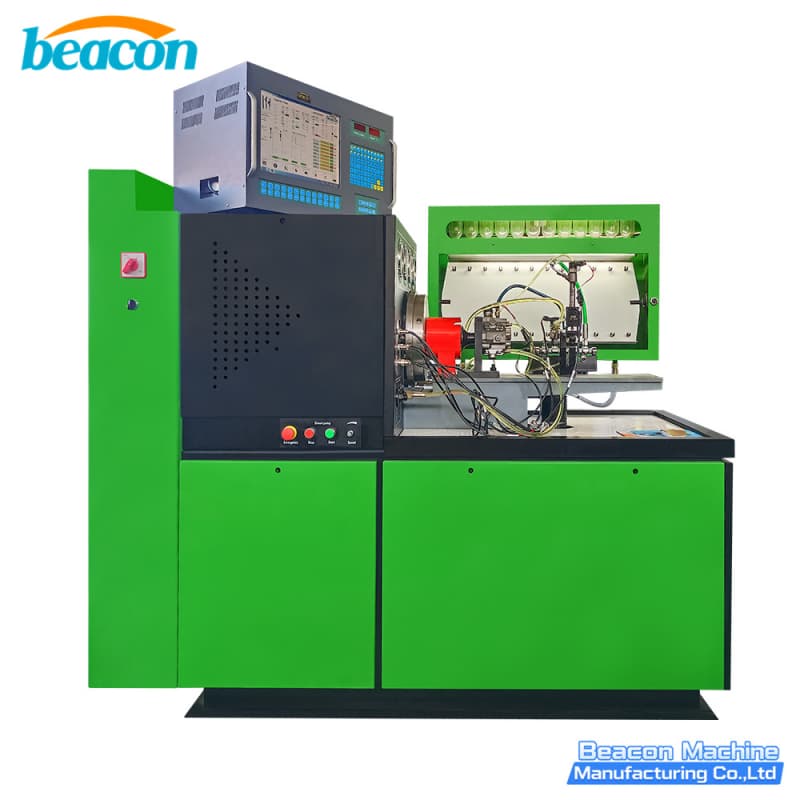

The Beacon CRS900S is a professional common rail injector test bench developed for testing electronic diesel injectors under simulated engine working conditions. It allows technicians to check injection quantity, backflow volume and injector stability with high accuracy.

This test bench supports common rail injectors from Bosch, Denso, Delphi and Siemens and is widely used in diesel repair shops and injector rebuilding centers.

Equipped with a high-pressure supply system and an intelligent control unit, the CRS900S ensures stable rail pressure and precise test control during operation.

With user-friendly software and a clear control panel, the CRS900S improves test efficiency and reduces human error in injector diagnosis.

scene graph

common rail injector test bench

diesel injector test bench

injector test bench

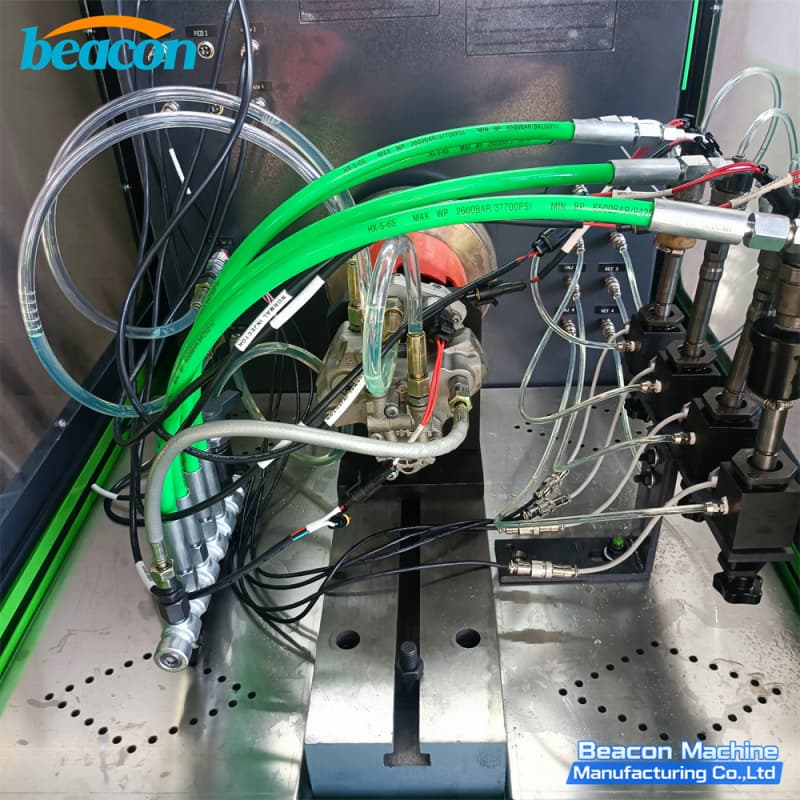

Detailed drawing

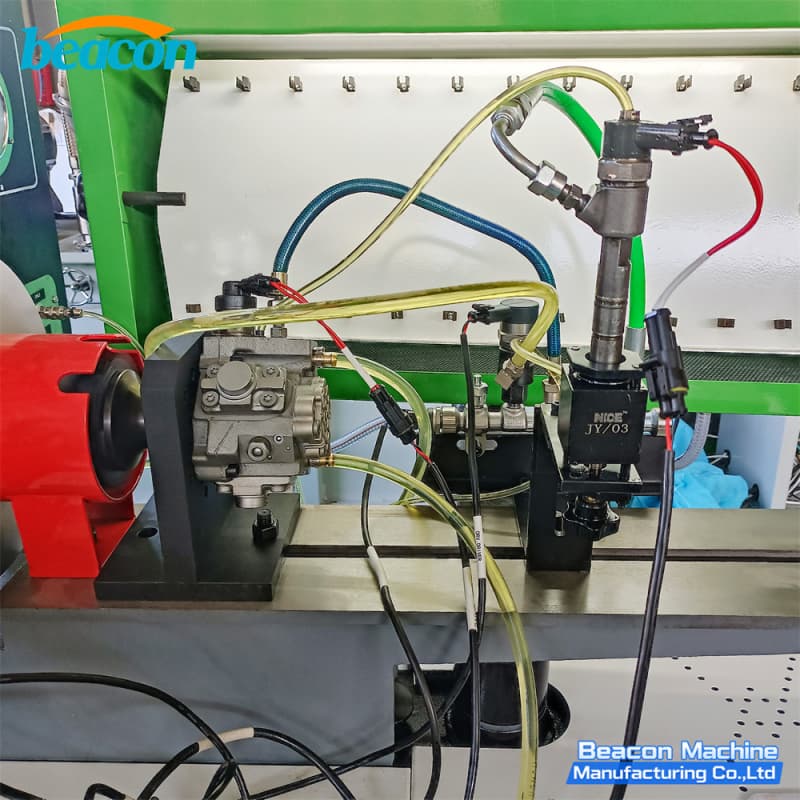

diesel fuel injector test benches

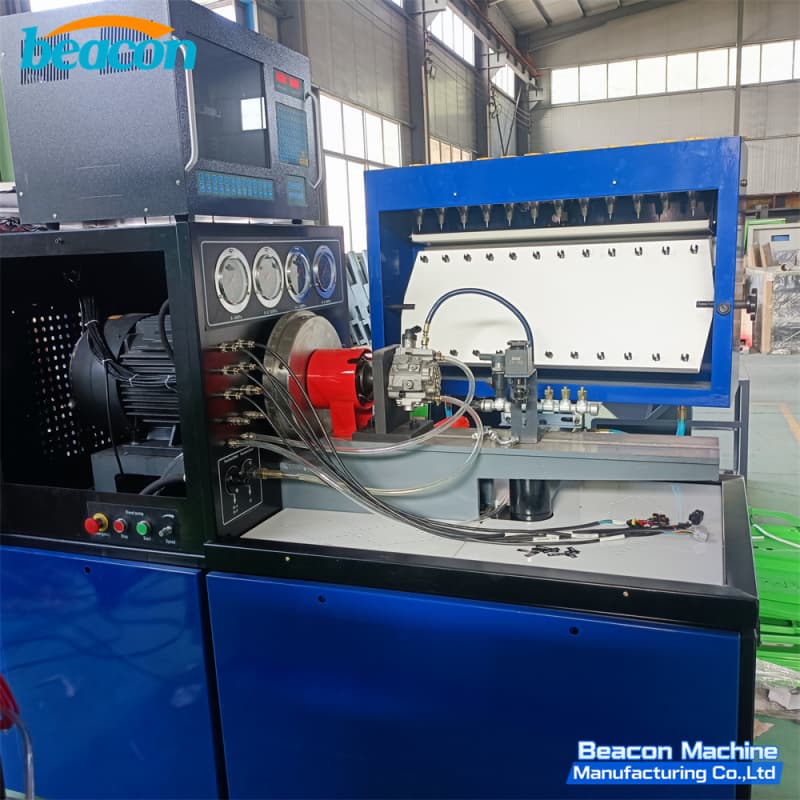

crdi injector test bench

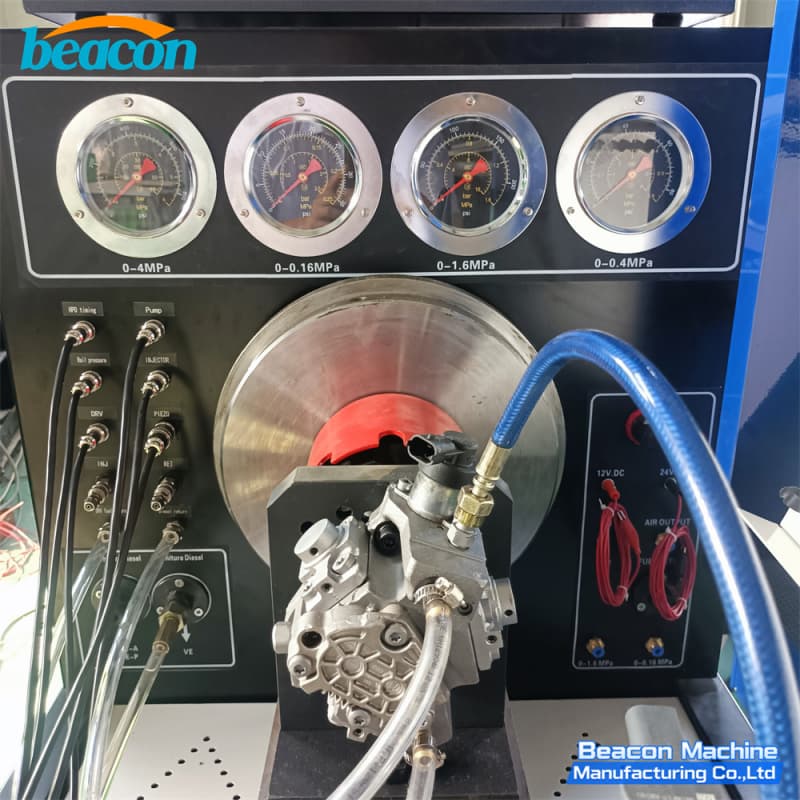

beacon diesel injector test bench

Accessories picture

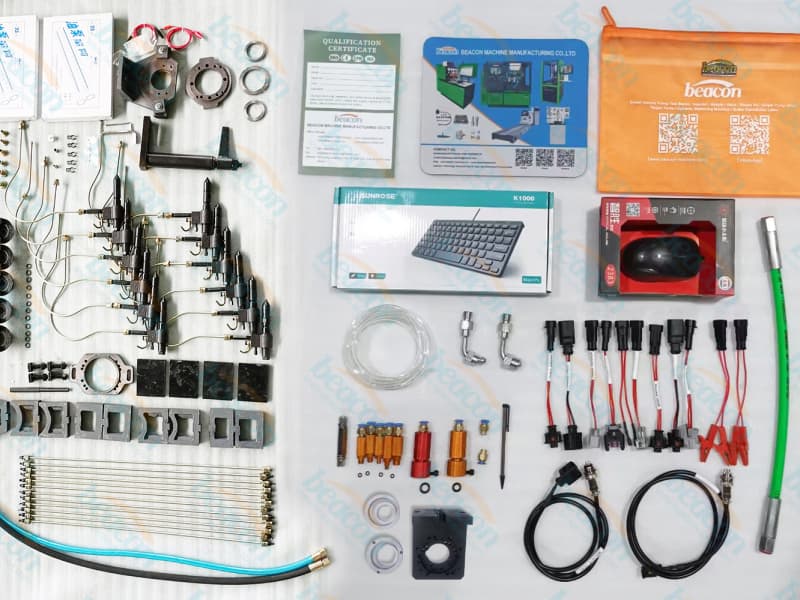

CRS900S accessories

parameter

Item	Specification
Model	CRS900S
Tested Injector Type	Common rail electronic injectors
Supported Brands	Bosch, Denso, Delphi, Siemens
Drive Motor Power	5.5 kW
Rail Pressure Range	0 – 1800 bar
Pressure Control	Electronic closed-loop control
Measuring Cylinders	6 pcs / 12 pcs (optional)
Test Functions	Injection quantity, return flow, response time
Control System	Industrial computer with test software
Fuel System	Closed-loop circulation with filtration
Cooling System	External water cooling
Power Supply	380V / 50Hz (customizable)
Machine Structure	Heavy-duty steel cabinet
Application	Injector repair shop, diesel service center
